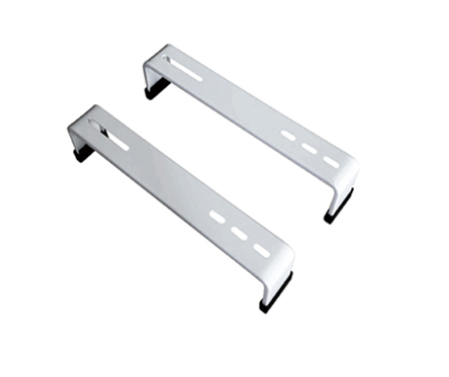

In the HVAC installation sector, the stable support of outdoor units not only affects equipment lifespan but is also directly related to public safety. Today, we are pleased to introduce the TB-125A bracket in detail – a product that combines high strength, excellent corrosion resistance, and exceptional cost-performance.

Core Specifications at a Glance

Before diving into the product details, let's quickly get to know the TB-125A's robust capabilities through its key data:

Model: TB-125A

Material Options: Cold rolled steel / Hot dipped steel / Stainless steel

Dimensions (mm): 100 x 500 x 80

Thickness (mm): 2.0 mm

Net Weight (kg): 2 kg

Load Capacity (kg): 250 kg

Product Highlights Explained

1. Exceeds Standard Load Requirements, Offering High Safety Redundancy

Although the TB-125A is designed for small split-system air conditioners, its maximum load capacity of 250 kg significantly exceeds the weight of typical household AC outdoor units (usually 50-90 kg). According to national renovation standards, the load-bearing capacity of an air conditioner outdoor unit bracket must be at least 4 times the unit's own weight. The TB-125A's design not only fully complies with but also greatly exceeds these national standards, providing substantial safety redundancy to ensure the unit remains stable even in harsh weather conditions.

2. Multiple Material Choices, Adaptable to Global Climates

We understand that different environments impose strict requirements regarding material corrosion resistance. Therefore, the TB-125A offers three material options:

Cold rolled Steel: Economical and suitable for dry, indoor, or general climate conditions.

Hot dipped Steel: Treated with a hot-dip galvanization process, offering excellent rust resistance, ideal for humid or rainy areas.

Stainless Steel:  For coastal areas with high salt spray or projects demanding the highest level of corrosion protection, stainless steel provides the longest-lasting protection, completely eliminating rust concerns.

3. Thicker Profile, Stable Structure

The main material of the bracket has a thickness of 2.0mm. This thickness ensures the bracket's resistance to deformation under long-term load. Combined with a compact triangular support structure, it provides extremely stable support while occupying minimal space.

4. High Flexibility: OEM/ODM Customization Supported

Whether you need to adjust specific dimensions, thickness, or a particular color, the TB-125A can be customized. This flexibility makes it suitable not only for standard installations but also for adapting to various special engineering projects.

Application Scenarios | Solving Space Challenges on Ground and Platforms

As a floor-standing bracket, the TB-125A is primarily used to elevate air conditioner outdoor units on horizontal surfaces. In many installation environments, it plays an indispensable role. You can click to view our other brackets https://oem-hvac.com/-Brackets for more options.

Here are the three most common application scenarios for the TB-125A:

Scenario 1: Ground Moisture and Snow Protection

In many countries and regions, placing the AC outdoor unit directly on the ground is not recommended.

Moisture Protection: During rainy seasons, water accumulation on the ground is common. Placing the outdoor unit on the TB-125A bracket effectively elevates it, preventing the control base plate from being submerged and damaged.

Snow Protection: For markets in North America, Northern Europe, and Northern China, where snow is heavy in winter, the TB-125A's elevated design ensures the unit's air intake is not blocked by snowdrifts, guaranteeing efficient heating operation.

Scenario 2: Protecting Roofs and Flat Platforms

Roofs or platforms on commercial buildings or high-rises often have waterproofing membranes. Placing heavy AC units directly on these membranes can, over time, damage the waterproof layer and cause leaks. The TB-125A distributes the weight through its support feet, protecting the roofing membrane while also leaving space underneath the unit for drainage and heat dissipation.

Scenario 3: Equipment Vibration Damping and Noise Reduction

Despite its sturdy build, the bracket weighs only 2kg. When used with rubber vibration-damping pads, the TB-125A effectively breaks the rigid connection between the operating unit and the ground (or floor slab), thereby reducing the transmission of low-frequency noise into the building and enhancing occupant comfort.

Installation Precautions

Although the TB-125A is a floor-standing bracket, the following points still require attention during installation:

Level Foundation: Ensure the placement surface is solid and level. If installing on soil or lawn, it is recommended to pre-pour a concrete foundation.

Vibration Damping: It is advisable to install rubber pads between the unit's feet and the bracket contact surface to reduce vibration.

Regular Inspection: It is recommended to check the bracket for rust or loose bolts seasonally each year to ensure long-term reliability.

The TB-125A floor-standing bracket for small split-system air conditioner outdoor units offers HVAC installers worldwide a safe, durable, and cost-effective choice, thanks to its robust materials (2.0mm thickness), exceptional load capacity (250kg), and flexible customization options.

Whether you are seeking a corrosion-resistant bracket or need compliant OEM customization for a commercial project, the TB-125A is a trustworthy choice.
