  • LTO-2CES-4Y Box-type Condensing Units
    LTO-2CES-4Y Box-type Condensing Units

    Compressor ： 4HP, Condenser【 Fan Diameter： 500 mm, Air Flow: 1*6900 m3/h, Fan Voltage : 220V/1PH/50Hz Power of Fan: 1*380 W, 4 Poles， 14260 kW 】, S： 7/8" D： 1/2" Overall Dimension: 1500*790*970 mm, Refrigerant:R404A,Temperature:-25°C~ +5°C

    Model: LTO-2CES-4Y
  • LTO-2DES-3Y Box-type Condensing Units
    LTO-2DES-3Y Box-type Condensing Units

    Compressor ： 3HP, Condenser【 Fan Diameter： 500 mm, Air Flow: 1*6900 m3/h, Fan Voltage : 220V/1PH/50Hz Power of Fan: 1*380 W, 4 Poles， 10700 kW 】, S： 718" D： 1/2" Overall Dimension: 1500*790*970 mm,Refrigerant:R404A,Temperature:-25°C~ +5°C

    Model: LTO-2DES-3Y

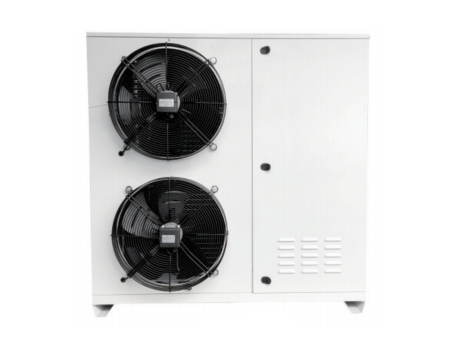

  • LTO-YF72E7G Box-type Condensing Units
    LTO-YF72E7G Box-type Condensing Units
    Compressor ： 10HP, Condenser【 Fan Diameter： 500 mm, Air Flow: 2*6900 m3/h, Fan Voltage : 220V/1PH/60Hz, Power of Fan: 2*380 W, 4 Poles， 22.7 kW 】, S： 1-1/8" D： 5/8" Overall Dimension: 1270*560*1410 mm
    Model: LTO-YF72E7G
  • LTO-YF65E7G Box-type Condensing Units
    LTO-YF65E7G Box-type Condensing Units
    Compressor ： 9HP, Condenser【 Fan Diameter： 500 mm, Air Flow: 2*6900 m3/h, Fan Voltage : 220V/1PH/60Hz, Power of Fan: 2*380 W, 4 Poles， 21.4 kW 】, S： 7/8" D： 5/8" Overall Dimension: 1270*560*1410 mm
    Model: LTO-YF65E7G
  • LTO-YF56E7G Box-type Condensing Units
    LTO-YF56E7G Box-type Condensing Units
    Compressor ： 8HP, Condenser【 Fan Diameter： 450 mm, Air Flow: 2*5100 m3/h, Fan Voltage : 220V/1PH/60Hz, Power of Fan: 2*250 W, 4 Poles， 17.5 kW 】, S： 7/8" D： 5/8" Overall Dimension: 1270*560*1190 mm
    Model: LTO-YF56E7G
  • LTO-YF41E7G Box-type Condensing Units
    LTO-YF41E7G Box-type Condensing Units
    Compressor ： 6HP, Condenser【 Fan Diameter： 400 mm, Air Flow: 2*3900 m3/h, Fan Voltage : 220V/1PH/60Hz, Power of Fan: 2*190 W, 4 Poles， 15 kW 】, S： 7/8" D： 1/2" Overall Dimension: 1270*560*990 mm
    Model: LTO-YF41E7G
  • LTO-YF35E7G Box-type Condensing Units
    LTO-YF35E7G Box-type Condensing Units
    Compressor ： 5HP, Condenser【 Fan Diameter： 400 mm, Air Flow: 2*3900 m3/h, Fan Voltage : 220V/1PH/60Hz, Power of Fan: 2*190 W, 4 Poles， 13.4 kW 】, S： 7/8" D： 1/2" Overall Dimension: 1270*560*990 mm
    Model: LTO-YF35E7G
  • LTO-YF29E7G Box-type Condensing Units
    LTO-YF29E7G Box-type Condensing Units
    Compressor ： 4HP, Condenser【 Fan Diameter： 400 mm, Air Flow: 2*3900 m3/h, Fan Voltage : 220V/1PH/60Hz, Power of Fan: 2*190 W, 4 Poles， 11 kW 】, S： 7/8" D： 1/2" Overall Dimension: 1270*560*990 mm
    Model: LTO-YF29E7G
  • LTO-YF20E7G Box-type Condensing Units
    LTO-YF20E7G Box-type Condensing Units
    Compressor ： 3HP, Condenser【 Fan Diameter： 450 mm, Air Flow: 1*5100 m3/h, Fan Voltage : 220V/1PH/60Hz, Power of Fan: 1*250 W, 4 Poles， 8.9 kW 】, S： 7/8" D： 1/2" Overall Dimension: 1270*560*690 mm
    Model: LTO-YF20E7G
