AL Series Sequencer, field proven for controlling the operation of heating elements and/or blower motors in electric, gas or oil heat systems. This sequencer has 2 switches & turns on at 30-10 seconds, and off at 15-65 seconds. Has a 240 v heater.

●Direct Replacement for Most Fan & Heat Sequencing Functions.

●240 Volt Input Control .

●Contacts Designated M1-M2 of a Multi-timing Sequencer will Turn On First and Turn Off Last, as Required by UL for Electric Heating Applications.

●Five Second on Delay Between all Subsequent Stages, Unless they Function Together.

Applications：Oil furnaces，Gas furnaces，Heat pumps，Electric furnaces

Replacement Part:  Mars 33265；KLIXON 6000E4-40；Coleman 7670-307,7670-308，7670-130, 7670-913, 7670-101

• Timing:Contacts M1-M2 will turn on 1st and turn off last；

• Off:15 - 65 Seconds；

• On:10 - 30Seconds ；

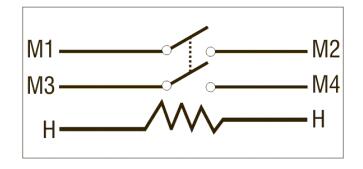

Sequencer Wiring Diagram

*Note all Sequencers include a 24 volt heater except the AL113 which has a 240 volt heater.
