LT-SC15G Secop Compressor Unit
Model：LT-SC15G

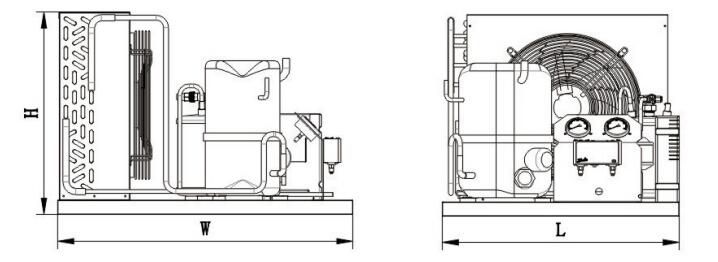

Compressor ：0.5HP,Condenser【 Fan Diameter：300mm,Air Flow:1 664m3/h,Fan Voltage :220V/1PH/50Hz,Power of Fan:85W,4Poles，10.2kW】,S：10.2",D：9.5"Overall Dimension:460*460*350mm,Refrigerant：R404A,Temperature：-25°C~ +15°C
Add Inquiry Go Buy
  • Description

    Products Characteristics

    • Adopt Tecumseh hermetic piston compressor.

    • Wide applications, adapt L/M/H BP different working conditions

    • Compact structure, small and flexible, beautiful appearance,

    • stable andreliable quality.

    • Adopt famous brand and high qulity refrigeration accessories.


    Configuration

    • Standard configurat on: Compressor, condenser,

    • fan motor, liquid receiver,filter drier.

    • Selection accessories: Oil separator, pressure controller,

    • H/L P oil gauge,suction accumulator, sight glass.


  • Product Specifications

    Compressor ：0.5HP,Condenser【 Fan Diameter：300mm,Air Flow:1 664m3/h,Fan Voltage :220V/1PH/50Hz,Power of Fan:85W,4Poles，10.2kW】,S：10.2",D：9.5"Overall Dimension:460*460*350mm,Refrigerant：R404A,Temperature：-25°C~ +15°C
